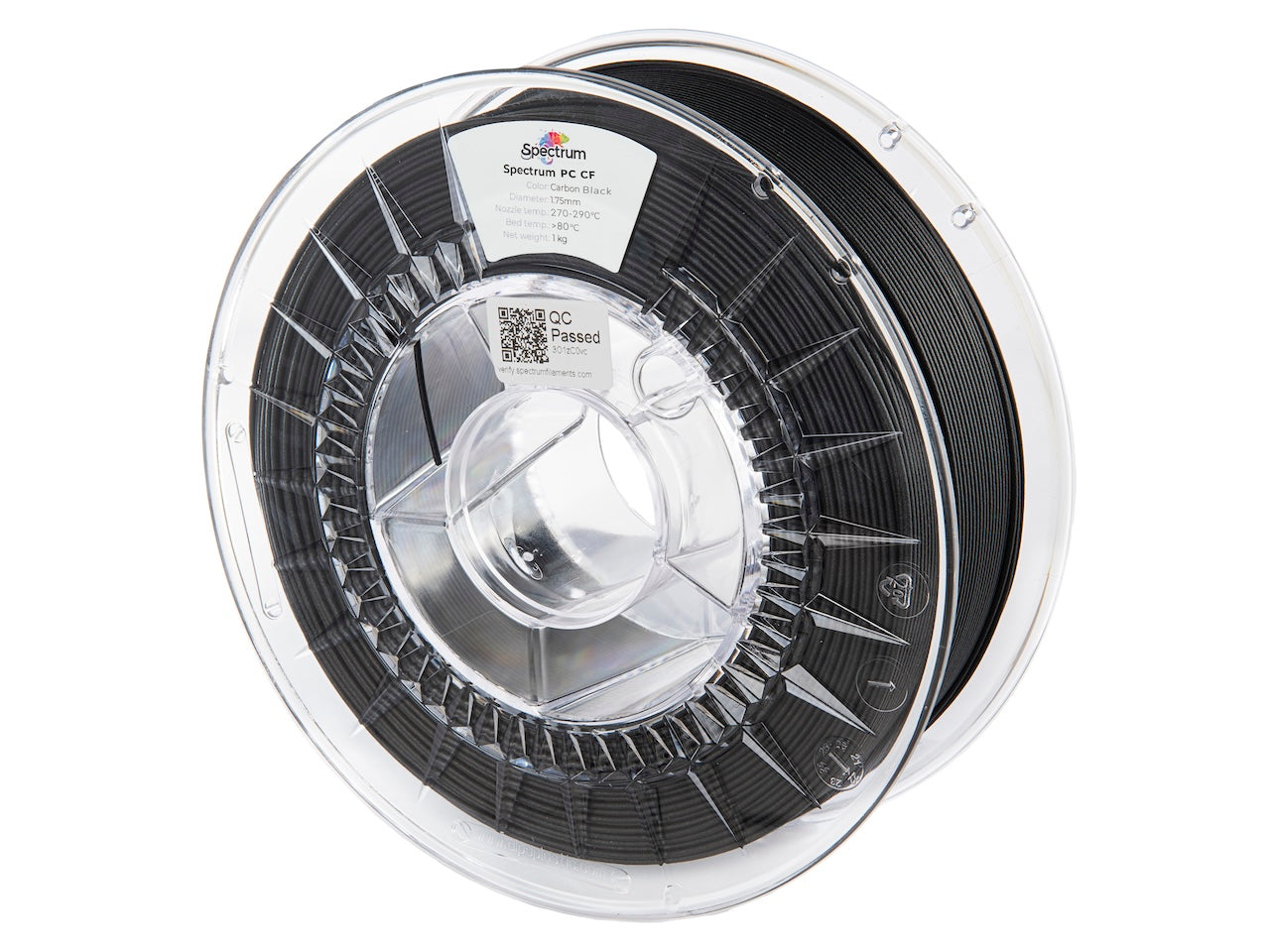

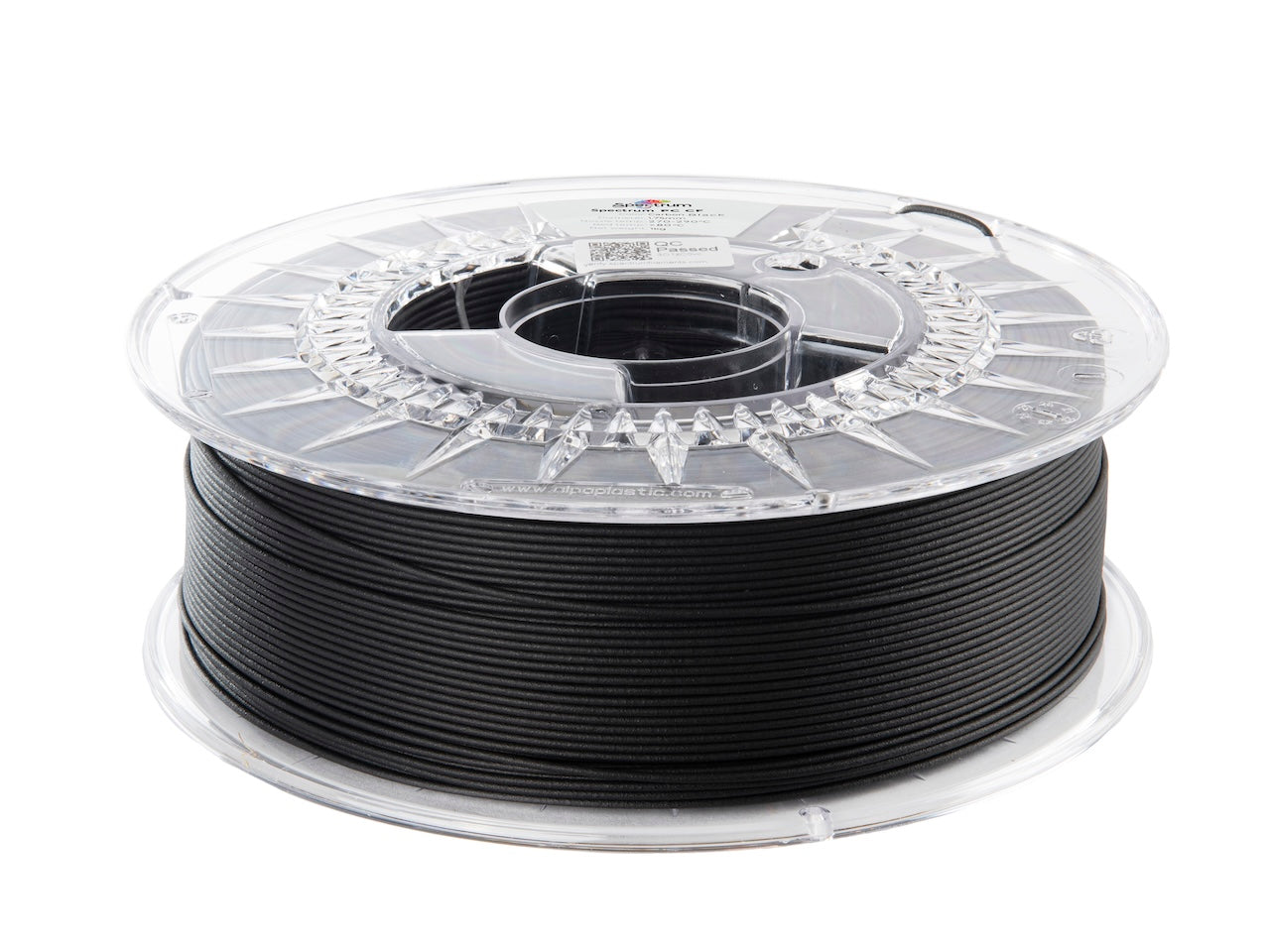

Filament Spectrum PC CF 1.75mm Carbon Black 1kg
Filament Spectrum PC CF
For advanced engineering and industrial projects
PC CF is an advanced 3D printing filament based on the PC 275 formulation, offering additional reinforcement with 10% carbon fiber. This unique combination provides higher mechanical strength,...
Filament Spectrum PC CF 1.75mm Carbon Black 1kg
Spectrum color name: Black
$57.99 USD
Description
Filament Spectrum PC CF
For advanced engineering and industrial projects
PC CF is an advanced 3D printing filament based on the PC 275 formulation, offering additional reinforcement with 10% carbon fiber. This unique combination provides higher mechanical strength, increased rigidity, and excellent impact resistance, making PC CF an ideal choice for demanding engineering and industrial projects.
The material retains all the key properties of PC 275, including excellent thermal resistance up to 150°C and good UV resistance, while the addition of carbon fiber further improves its stability and resistance to deformation. PC CF filament is optimized for low shrinkage, allowing for precise printing with minimal risk of warping.
PC CF enables 3D printing of large models without the need for a heated chamber. The use of carbon fiber not only strengthens the printed structures but also gives them an elegant, matte finish, perfect for creating professional prototypes, functional parts, and industrial tools. Thanks to its resistance to moisture, chemicals, and abrasion, PC CF is an excellent material for producing parts exposed to harsh operating conditions.
Tip: Due to the carbon fiber content, it is recommended to use nozzles with a diameter larger than the standard 0.4mm. Additionally, the presence of carbon fiber may cause degradation of standard brass nozzles, so for long-term use of Spectrum PA6 CF15, it is recommended to use hardened steel or ruby nozzles.
Key Features:
- 10% CF
- High impact strength & durability
- Excellent mechanical properties
- Good UV resistance
- Dimensional stability
- Thermal resistance HDT B - 140°C
- Vicat softening temperature - 150°C
- Low-warp technology
Applications:
- Prototyping
- Functional parts
- Electronic components
- Automotive components
- Sports equipment
- Mechanical components
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
250
44
140
52
120
Plastic
Transparent
250
44
140
52
80
Cardboard
-
500
55
200
52
240
Plastic
Transparent
750
55
200
52
240
Plastic
Transparent
1000
67
200
52
260
Plastic
Transparent
1000
67
200
52
180
Cardboard
-
2000
100
300
52
600
Plastic
Black
2000
100
300
52
420
Cardboard
-
4500
100
350
52
780
Plastic
Black
8000
167
355
36
1020
Plastic
Black
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
Reviews
Description
Filament Spectrum PC CF
For advanced engineering and industrial projects
PC CF is an advanced 3D printing filament based on the PC 275 formulation, offering additional reinforcement with 10% carbon fiber. This unique combination provides higher mechanical strength, increased rigidity, and excellent impact resistance, making PC CF an ideal choice for demanding engineering and industrial projects.
The material retains all the key properties of PC 275, including excellent thermal resistance up to 150°C and good UV resistance, while the addition of carbon fiber further improves its stability and resistance to deformation. PC CF filament is optimized for low shrinkage, allowing for precise printing with minimal risk of warping.
PC CF enables 3D printing of large models without the need for a heated chamber. The use of carbon fiber not only strengthens the printed structures but also gives them an elegant, matte finish, perfect for creating professional prototypes, functional parts, and industrial tools. Thanks to its resistance to moisture, chemicals, and abrasion, PC CF is an excellent material for producing parts exposed to harsh operating conditions.
Tip: Due to the carbon fiber content, it is recommended to use nozzles with a diameter larger than the standard 0.4mm. Additionally, the presence of carbon fiber may cause degradation of standard brass nozzles, so for long-term use of Spectrum PA6 CF15, it is recommended to use hardened steel or ruby nozzles.
Key Features:
- 10% CF
- High impact strength & durability
- Excellent mechanical properties
- Good UV resistance
- Dimensional stability
- Thermal resistance HDT B - 140°C
- Vicat softening temperature - 150°C
- Low-warp technology
Applications:
- Prototyping
- Functional parts
- Electronic components
- Automotive components
- Sports equipment
- Mechanical components
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
| Content [g] | Width [mm] | Outer diameter [mm] | Inner diameter [mm] | Weight empty [g] | Material | Spool color |
|---|---|---|---|---|---|---|
| 250 | 44 | 140 | 52 | 120 | Plastic | Transparent |
| 250 | 44 | 140 | 52 | 80 | Cardboard | - |
| 500 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 750 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 260 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 180 | Cardboard | - |
| 2000 | 100 | 300 | 52 | 600 | Plastic | Black |
| 2000 | 100 | 300 | 52 | 420 | Cardboard | - |
| 4500 | 100 | 350 | 52 | 780 | Plastic | Black |
| 8000 | 167 | 355 | 36 | 1020 | Plastic | Black |
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
