Filament Spectrum PC/PTFE 1.75mm NAT 0.75kg
Filament Spectrum PC/PTFE
High temperature resistance and abrasion resistance
Spectrum PC/PTFE is an advanced polycarbonate-based (PC) composite filament with the addition of PTFE commonly known as teflon. The high demand and limited availability of additive manufacturing...
Filament Spectrum PC/PTFE 1.75mm NAT 0.75kg
Spectrum color name: Natural
$57.99 USD
Description
Filament Spectrum PC/PTFE
High temperature resistance and abrasion resistance
Spectrum PC/PTFE is an advanced polycarbonate-based (PC) composite filament with the addition of PTFE commonly known as teflon. The high demand and limited availability of additive manufacturing materials with very good mechanical properties, with particular emphasis on high abrasion resistance, led to the efforts aimed to combine great properties of PC and PTFE. Polycarbonate provides high mechanical resistance and PTFE complements other properties by reducing wear and friction.
The applied modifications ensure improved thermal stability of printed parts, increased electrical insulation and higher chemical and water resistance. Due to its properties, Spectrum PC/PTFE filament is a material for a wide range of industrial applications. Materials printed using the PC/PTFE filament can be machined for a perfectly smooth surface. The use of this type of material makes it possible to manufacture parts with relatively complex geometries while maintaining relatively high dimensional accuracy.
To attain the very attractive properties of Spectrum PC/PTFE, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.
Tip: It is recommended to print using a heated chamber.
Key features:
- low processing shrinkage (linear) approx. 0.6%
- heat deflection temperature (HDT)- 140°C
- Vicat softening point - 145°C
- flammability rating UL 94 (3.0mm) - V1
- electrical resistance 1E12 Ohm
- static coefficient of friction - 0.18
- dynamic coefficient of friction - 0.14
- high abrasion resistance
- high mechanical strength
- very strong lamination of layers
Applications:
- manufacturing low friction parts
- manufacturing parts providing heat, electrical and thermal insulation
- manufacturing low-load gears and transmission elements
- manufacturing tools used to assemble components during the production process of
- end-use parts
- functional prototyping
Packaging

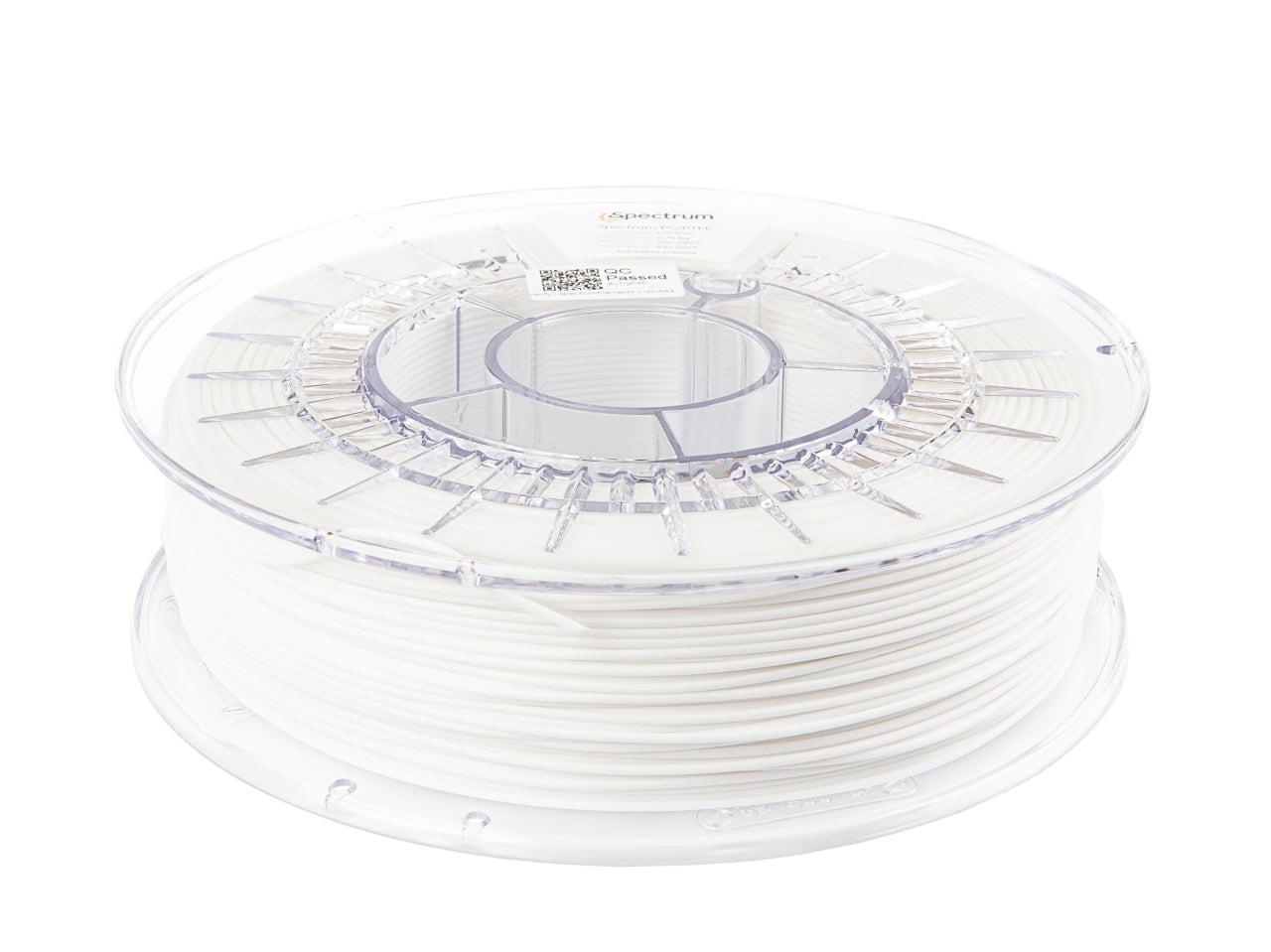

The filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. The filament is vacuum-packed with a moisture absorber. Whole product is packed in the original, foiled Spectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
250
44
140
52
120
Plastic
Transparent
250
44
140
52
80
Cardboard
-
500
55
200
52
240
Plastic
Transparent
750
55
200
52
240
Plastic
Transparent
1000
67
200
52
260
Plastic
Transparent
1000
67
200
52
180
Cardboard
-
2000
100
300
52
600
Plastic
Black
2000
100
300
52
420
Cardboard
-
4500
100
350
52
780
Plastic
Black
8000
167
355
36
1020
Plastic
Black
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
Reviews
Description
Filament Spectrum PC/PTFE
High temperature resistance and abrasion resistance
Spectrum PC/PTFE is an advanced polycarbonate-based (PC) composite filament with the addition of PTFE commonly known as teflon. The high demand and limited availability of additive manufacturing materials with very good mechanical properties, with particular emphasis on high abrasion resistance, led to the efforts aimed to combine great properties of PC and PTFE. Polycarbonate provides high mechanical resistance and PTFE complements other properties by reducing wear and friction.
The applied modifications ensure improved thermal stability of printed parts, increased electrical insulation and higher chemical and water resistance. Due to its properties, Spectrum PC/PTFE filament is a material for a wide range of industrial applications. Materials printed using the PC/PTFE filament can be machined for a perfectly smooth surface. The use of this type of material makes it possible to manufacture parts with relatively complex geometries while maintaining relatively high dimensional accuracy.
To attain the very attractive properties of Spectrum PC/PTFE, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.
Tip: It is recommended to print using a heated chamber.
Key features:
- low processing shrinkage (linear) approx. 0.6%
- heat deflection temperature (HDT)- 140°C
- Vicat softening point - 145°C
- flammability rating UL 94 (3.0mm) - V1
- electrical resistance 1E12 Ohm
- static coefficient of friction - 0.18
- dynamic coefficient of friction - 0.14
- high abrasion resistance
- high mechanical strength
- very strong lamination of layers
Applications:
- manufacturing low friction parts
- manufacturing parts providing heat, electrical and thermal insulation
- manufacturing low-load gears and transmission elements
- manufacturing tools used to assemble components during the production process of
- end-use parts
- functional prototyping
Packaging
The filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. The filament is vacuum-packed with a moisture absorber. Whole product is packed in the original, foiled Spectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
| Content [g] | Width [mm] | Outer diameter [mm] | Inner diameter [mm] | Weight empty [g] | Material | Spool color |
|---|---|---|---|---|---|---|
| 250 | 44 | 140 | 52 | 120 | Plastic | Transparent |
| 250 | 44 | 140 | 52 | 80 | Cardboard | - |
| 500 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 750 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 260 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 180 | Cardboard | - |
| 2000 | 100 | 300 | 52 | 600 | Plastic | Black |
| 2000 | 100 | 300 | 52 | 420 | Cardboard | - |
| 4500 | 100 | 350 | 52 | 780 | Plastic | Black |
| 8000 | 167 | 355 | 36 | 1020 | Plastic | Black |
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
