Filament Spectrum PCTG GF10 1.75mm NAT 0.5kg
Spectrum PCTG GF10 filament
Durability of PCTG enhanced by the advantages of glass fibre
The potential of high-impact PCTG inspired us to develop another composite based on this copolyester – Spectrum PCTG GF10. The use of...
Description
Spectrum PCTG GF10 filament
Durability of PCTG enhanced by the advantages of glass fibre
The potential of high-impact PCTG inspired us to develop another composite based on this copolyester – Spectrum PCTG GF10. The use of glass fibre filling has resulted in a high-strength filament with an intriguingly matt surface.
When creating the composition, we paid particular attention to reducing the abrasiveness of the glass fibres, which is typical for this type of filling. For this reason, we used functionalised glass fibres with a less aggressive geometry, reducing degradation of the printer nozzle.
Spectrum PCTG GF10 is a technical filament with high stiffness and hardness. Thanks to its extremely high interlayer adhesion and low shrinkage, it allows even intermediate users to execute large prints.
In addition, the glass fibres give the prints a distinctive texture, which, in addition to its undoubted aesthetic qualities, also translates into increased usability. Models made from Spectrum PCTG GF10 can be used wherever increased adhesion, increased durability against cyclic load and chemical resistance are important.
Key features:
- heat deflection temperature HDT - 76°C
- high stiffness and tensile strength
- good impact resistance
- high surface quality after printing
- good corrosion resistance
- chemical resistance
- good chemical resistance and electrical and thermal insulation,
- high dimensional accuracy of the printed elements
Applications:
- visual and functional prototyping
- manufacture of safety devices, housings and covers
- electrical safety components
- conceptual models
- manufacture of parts exposed to chemical agents
- manufacturing tools and equipment
Packaging

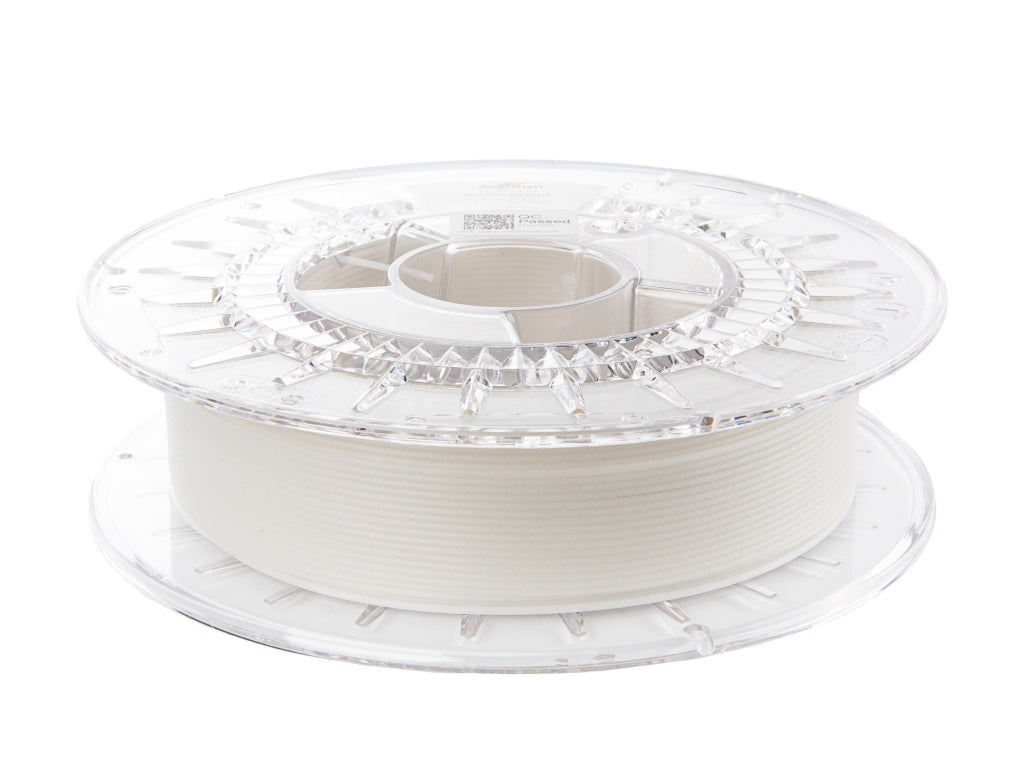

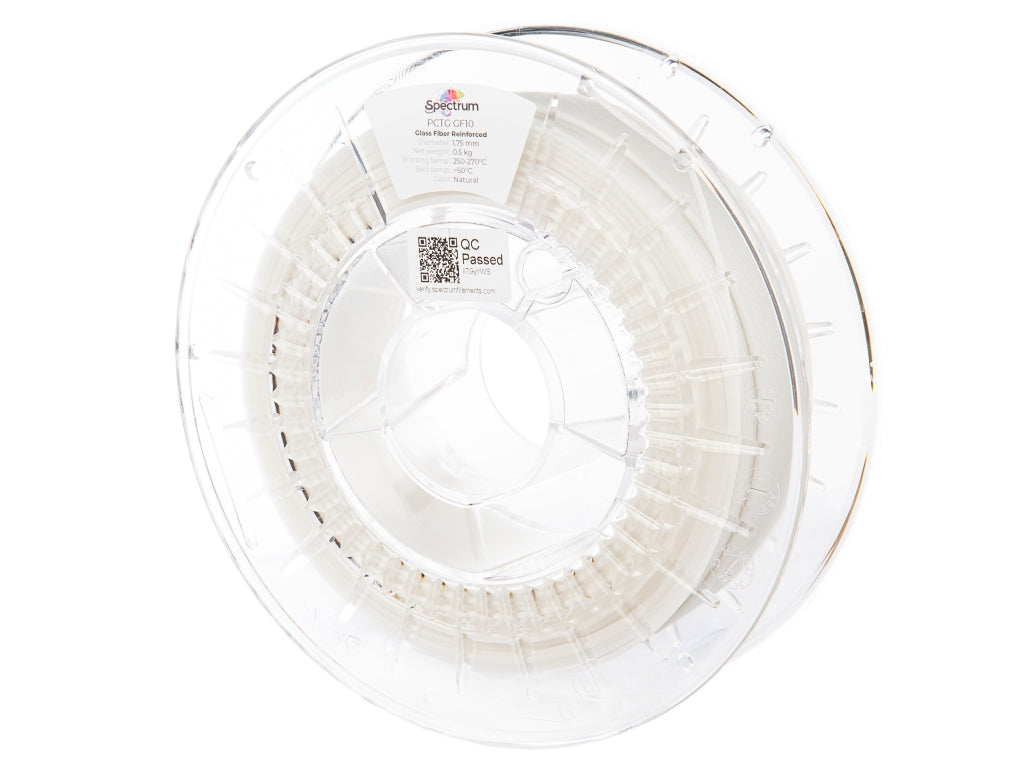

Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
250
44
140
52
120
Plastic
Transparent
250
44
140
52
80
Cardboard
-
500
55
200
52
240
Plastic
Transparent
750
55
200
52
240
Plastic
Transparent
1000
67
200
52
260
Plastic
Transparent
1000
67
200
52
180
Cardboard
-
2000
100
300
52
600
Plastic
Black
2000
100
300
52
420
Cardboard
-
4500
100
350
52
780
Plastic
Black
8000
167
355
36
1020
Plastic
Black
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
Reviews
Description
Spectrum PCTG GF10 filament
Durability of PCTG enhanced by the advantages of glass fibre
The potential of high-impact PCTG inspired us to develop another composite based on this copolyester – Spectrum PCTG GF10. The use of glass fibre filling has resulted in a high-strength filament with an intriguingly matt surface.
When creating the composition, we paid particular attention to reducing the abrasiveness of the glass fibres, which is typical for this type of filling. For this reason, we used functionalised glass fibres with a less aggressive geometry, reducing degradation of the printer nozzle.
Spectrum PCTG GF10 is a technical filament with high stiffness and hardness. Thanks to its extremely high interlayer adhesion and low shrinkage, it allows even intermediate users to execute large prints.
In addition, the glass fibres give the prints a distinctive texture, which, in addition to its undoubted aesthetic qualities, also translates into increased usability. Models made from Spectrum PCTG GF10 can be used wherever increased adhesion, increased durability against cyclic load and chemical resistance are important.
Key features:
- heat deflection temperature HDT - 76°C
- high stiffness and tensile strength
- good impact resistance
- high surface quality after printing
- good corrosion resistance
- chemical resistance
- good chemical resistance and electrical and thermal insulation,
- high dimensional accuracy of the printed elements
Applications:
- visual and functional prototyping
- manufacture of safety devices, housings and covers
- electrical safety components
- conceptual models
- manufacture of parts exposed to chemical agents
- manufacturing tools and equipment
Packaging
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
| Content [g] | Width [mm] | Outer diameter [mm] | Inner diameter [mm] | Weight empty [g] | Material | Spool color |
|---|---|---|---|---|---|---|
| 250 | 44 | 140 | 52 | 120 | Plastic | Transparent |
| 250 | 44 | 140 | 52 | 80 | Cardboard | - |
| 500 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 750 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 260 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 180 | Cardboard | - |
| 2000 | 100 | 300 | 52 | 600 | Plastic | Black |
| 2000 | 100 | 300 | 52 | 420 | Cardboard | - |
| 4500 | 100 | 350 | 52 | 780 | Plastic | Black |
| 8000 | 167 | 355 | 36 | 1020 | Plastic | Black |
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
