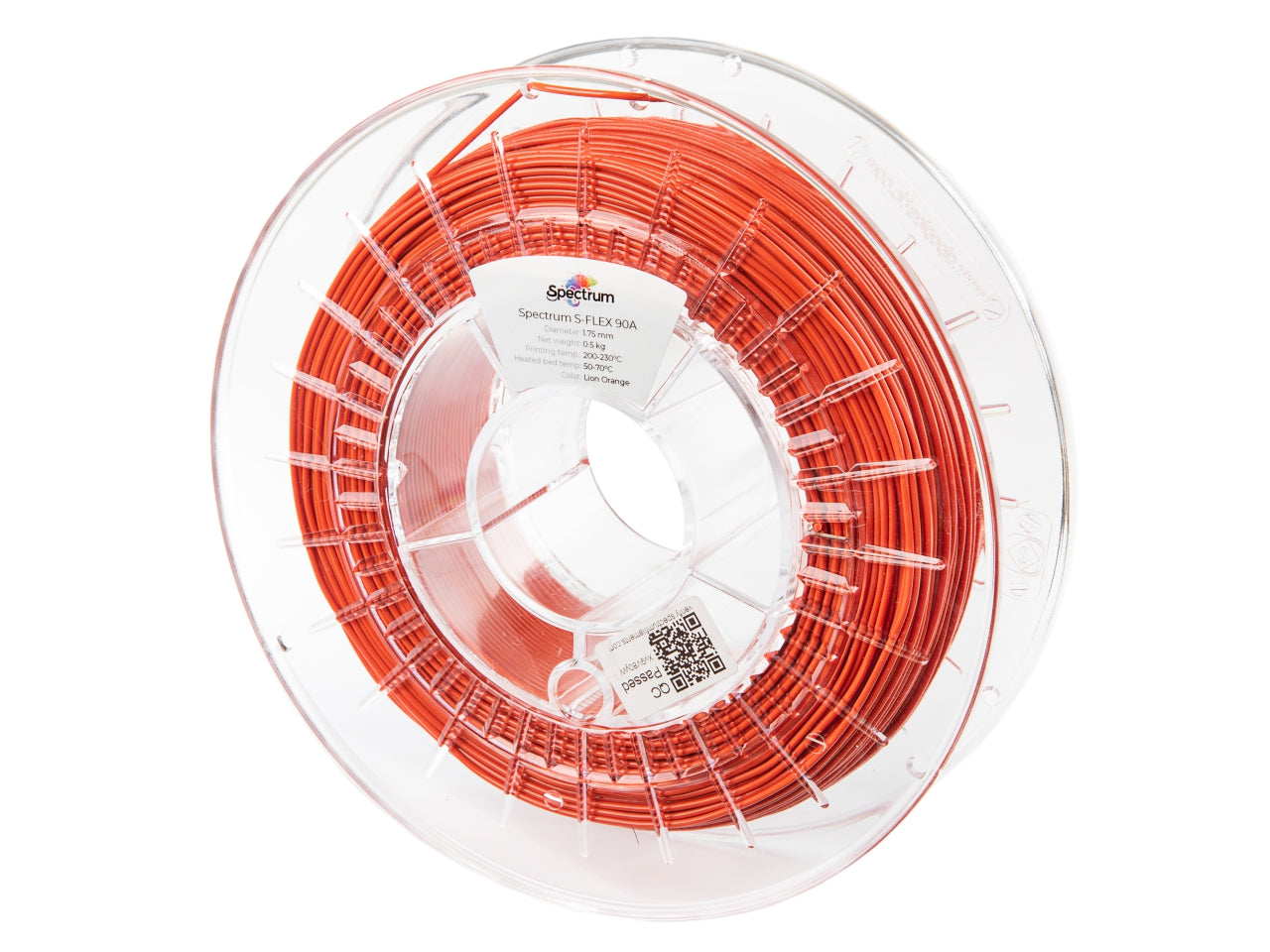

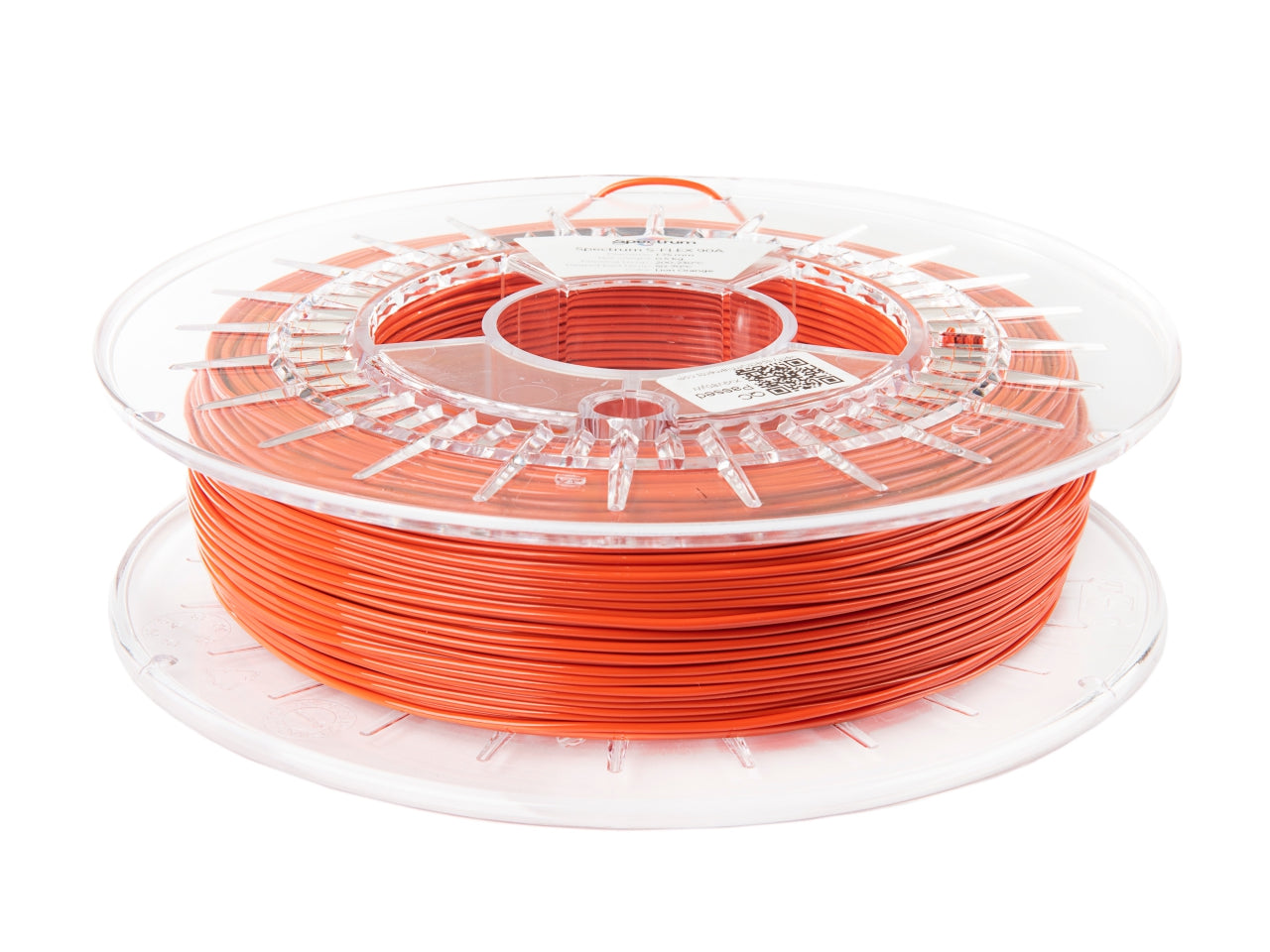

Filament Spectrum S-Flex 90A 1.75mm LION ORANGE 0.5kg
Filament Spectrum S-Flex 90A
Where durability and flexibility is essential
Spectrum S-Flex 90A is a filament designed for 3D printing, which enables you to manufacture flexible items in a much simpler way than with other materials of this type. The...
Filament Spectrum S-Flex 90A 1.75mm LION ORANGE 0.5kg
Spectrum color name: Orange
Choose another$27.99 USD
Description
Filament Spectrum S-Flex 90A
Where durability and flexibility is essential
Spectrum S-Flex 90A is a filament designed for 3D printing, which enables you to manufacture flexible items in a much simpler way than with other materials of this type. The appropriate composition of the material provides for good adhesion both between layers and between the printed item and the build platform.
Due to the resistance to hydrocarbons and good lamination between layers, S-Flex 90A allows manufacturing of sealing items which need to be resistant to any operating fluid ensuring the best tightness possible. Parts made of this material can be used as energy absorbers, i.e. all kinds of bumpers or vibration dampers.
In addition to the above mentioned properties, S-Flex 90A material is also characterized by good resistance to UV radiation and high resistance to aging. Flexible filament S-Flex 90A shows resistance to weak and diluted acids and bases.
Key features:
- very good wear and tear resistance
- up to 500% elongation at break
- Shore-A hardness of 90
- resistance to many common industrial oils and chemicals
- low shrinkage
- high quality surface
- reduced stringing while the printer is running idle
- stability of shape and material properties in the temperature range -30 to + 60°C
Applications:
- manufacturing of seals with a high chemical resistance
- production of items, which has to be used as energy adsorbents
- functional parts
- all kinds of bumpers, vibration dampers
- guides
- protective cases
- snap-fit parts
- sleeves
- hinges
Packaging
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, foiledSpectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
250
44
140
52
120
Plastic
Transparent
250
44
140
52
80
Cardboard
-
500
55
200
52
240
Plastic
Transparent
750
55
200
52
240
Plastic
Transparent
1000
67
200
52
260
Plastic
Transparent
1000
67
200
52
180
Cardboard
-
2000
100
300
52
600
Plastic
Black
2000
100
300
52
420
Cardboard
-
4500
100
350
52
780
Plastic
Black
8000
167
355
36
1020
Plastic
Black
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
Reviews
Description
Filament Spectrum S-Flex 90A
Where durability and flexibility is essential
Spectrum S-Flex 90A is a filament designed for 3D printing, which enables you to manufacture flexible items in a much simpler way than with other materials of this type. The appropriate composition of the material provides for good adhesion both between layers and between the printed item and the build platform.
Due to the resistance to hydrocarbons and good lamination between layers, S-Flex 90A allows manufacturing of sealing items which need to be resistant to any operating fluid ensuring the best tightness possible. Parts made of this material can be used as energy absorbers, i.e. all kinds of bumpers or vibration dampers.
In addition to the above mentioned properties, S-Flex 90A material is also characterized by good resistance to UV radiation and high resistance to aging. Flexible filament S-Flex 90A shows resistance to weak and diluted acids and bases.
Key features:
- very good wear and tear resistance
- up to 500% elongation at break
- Shore-A hardness of 90
- resistance to many common industrial oils and chemicals
- low shrinkage
- high quality surface
- reduced stringing while the printer is running idle
- stability of shape and material properties in the temperature range -30 to + 60°C
Applications:
- manufacturing of seals with a high chemical resistance
- production of items, which has to be used as energy adsorbents
- functional parts
- all kinds of bumpers, vibration dampers
- guides
- protective cases
- snap-fit parts
- sleeves
- hinges
Packaging
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, foiledSpectrum Filaments packaging.
Specification
General information
Specification
Technical data
How to print?
Spool dimensions
| Content [g] | Width [mm] | Outer diameter [mm] | Inner diameter [mm] | Weight empty [g] | Material | Spool color |
|---|---|---|---|---|---|---|
| 250 | 44 | 140 | 52 | 120 | Plastic | Transparent |
| 250 | 44 | 140 | 52 | 80 | Cardboard | - |
| 500 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 750 | 55 | 200 | 52 | 240 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 260 | Plastic | Transparent |
| 1000 | 67 | 200 | 52 | 180 | Cardboard | - |
| 2000 | 100 | 300 | 52 | 600 | Plastic | Black |
| 2000 | 100 | 300 | 52 | 420 | Cardboard | - |
| 4500 | 100 | 350 | 52 | 780 | Plastic | Black |
| 8000 | 167 | 355 | 36 | 1020 | Plastic | Black |
Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
